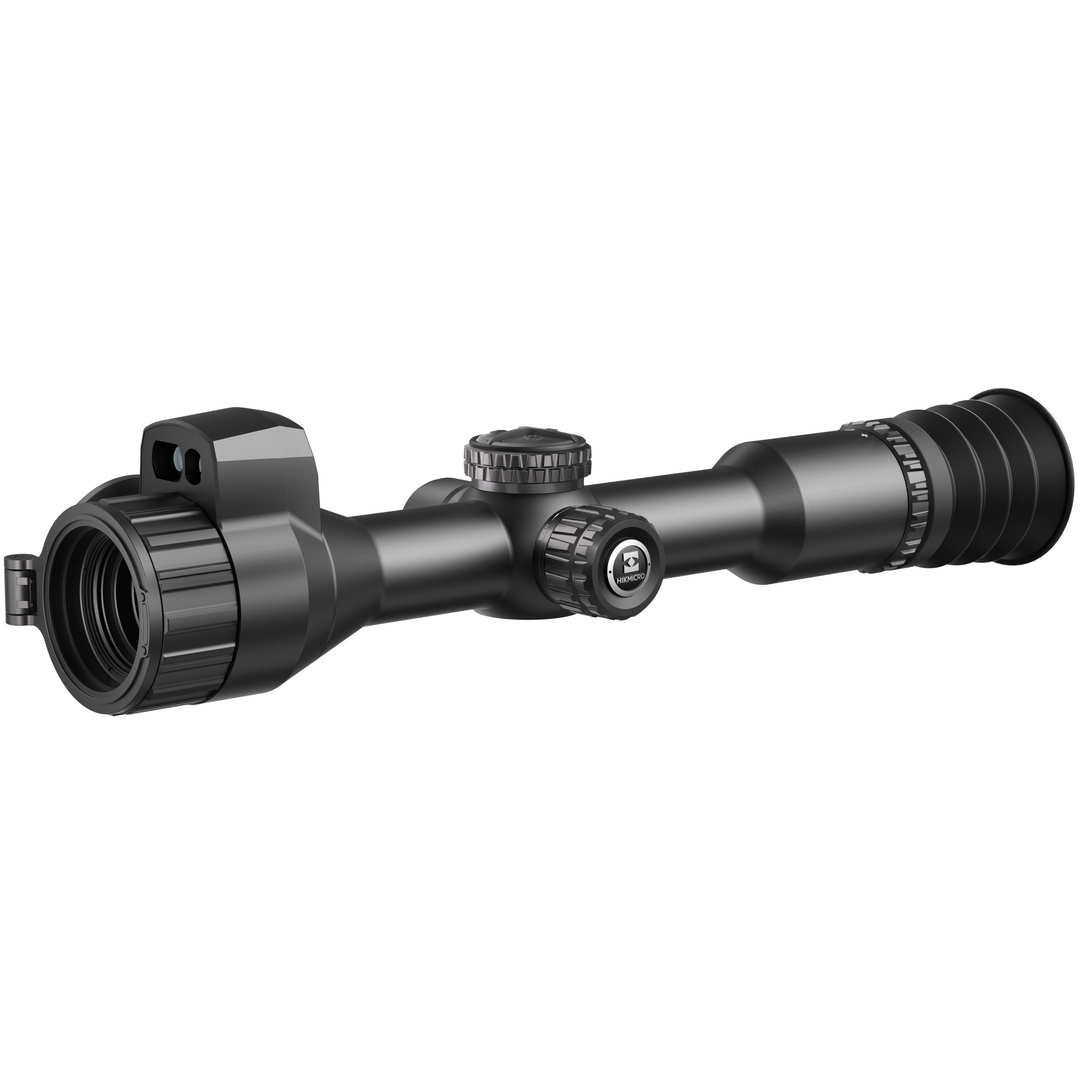

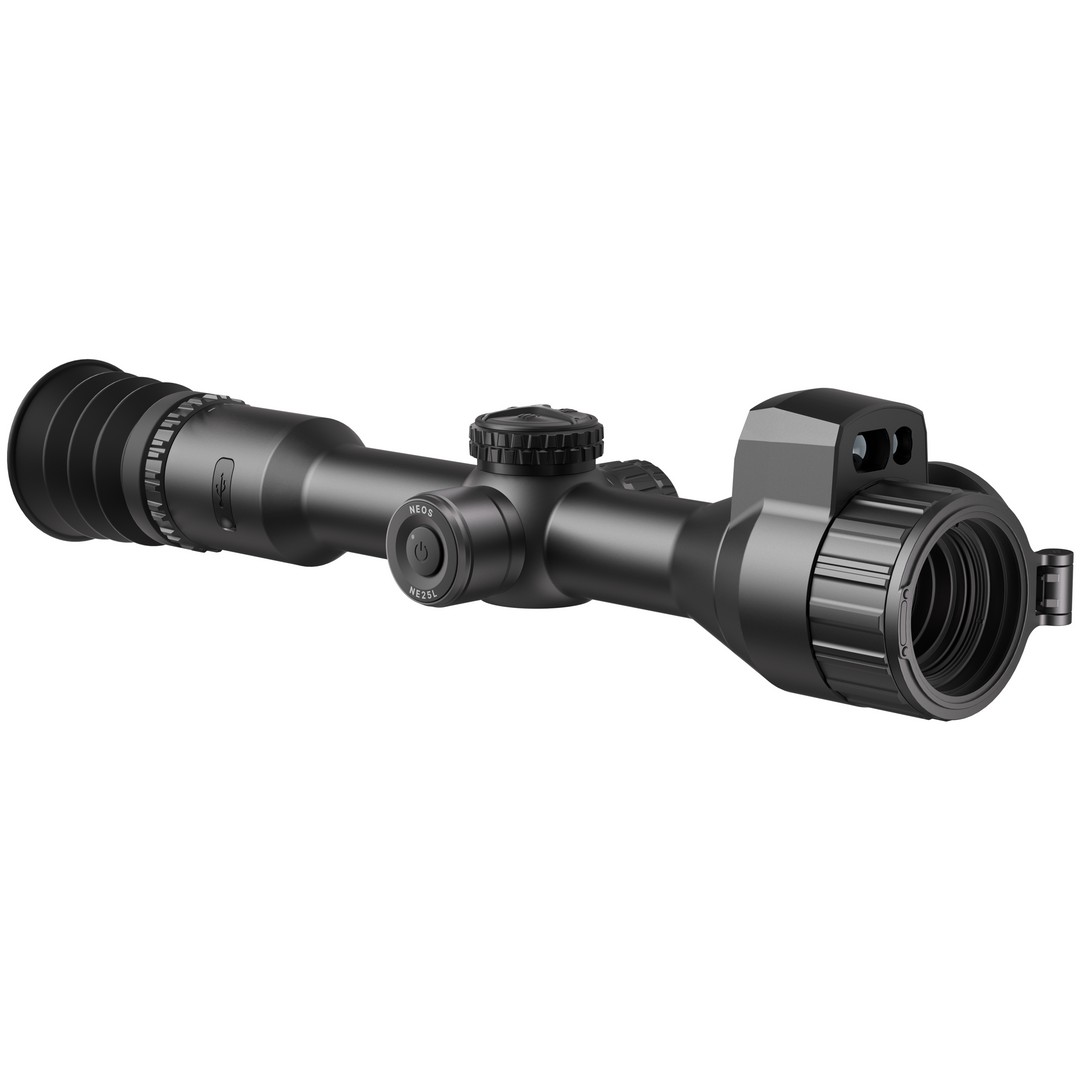

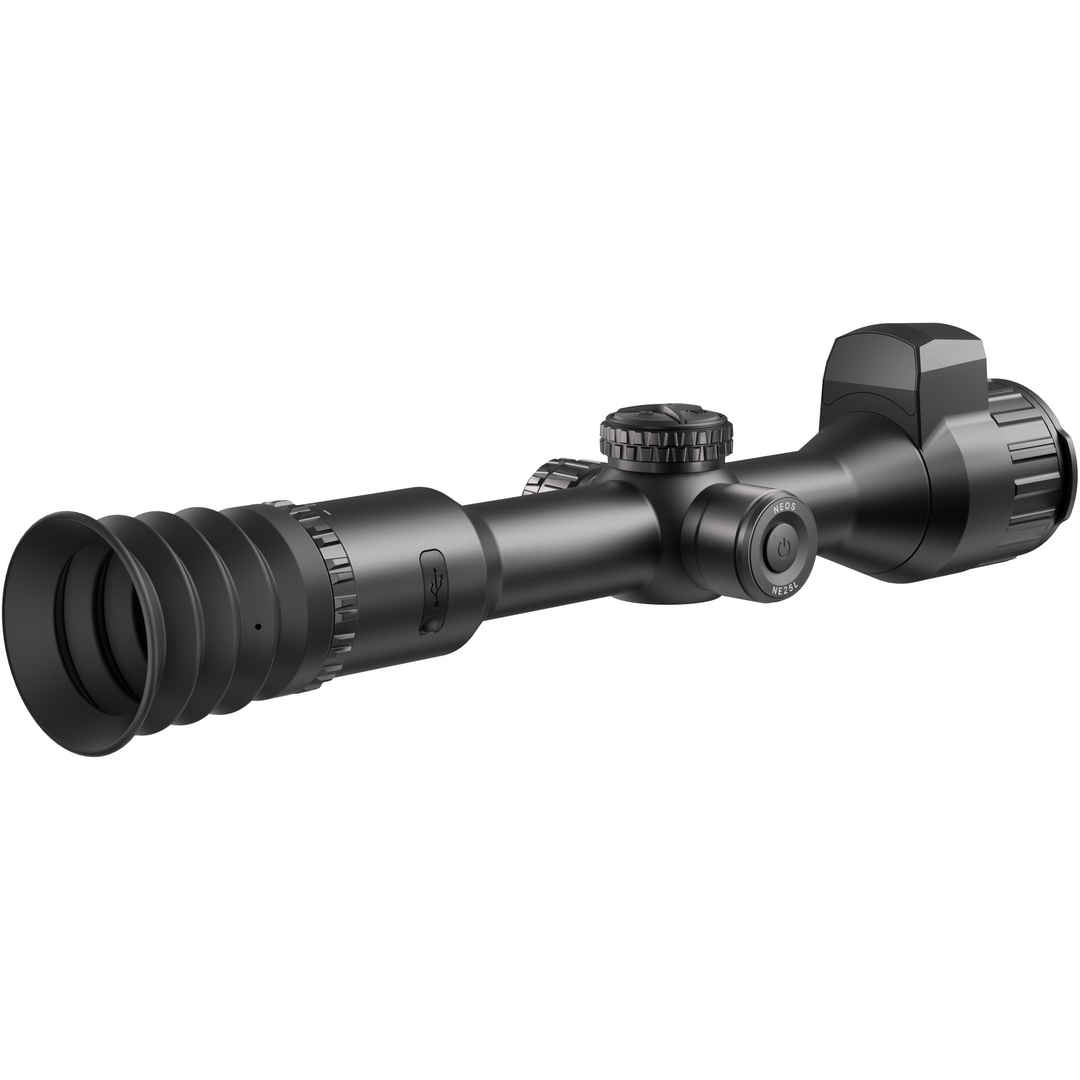

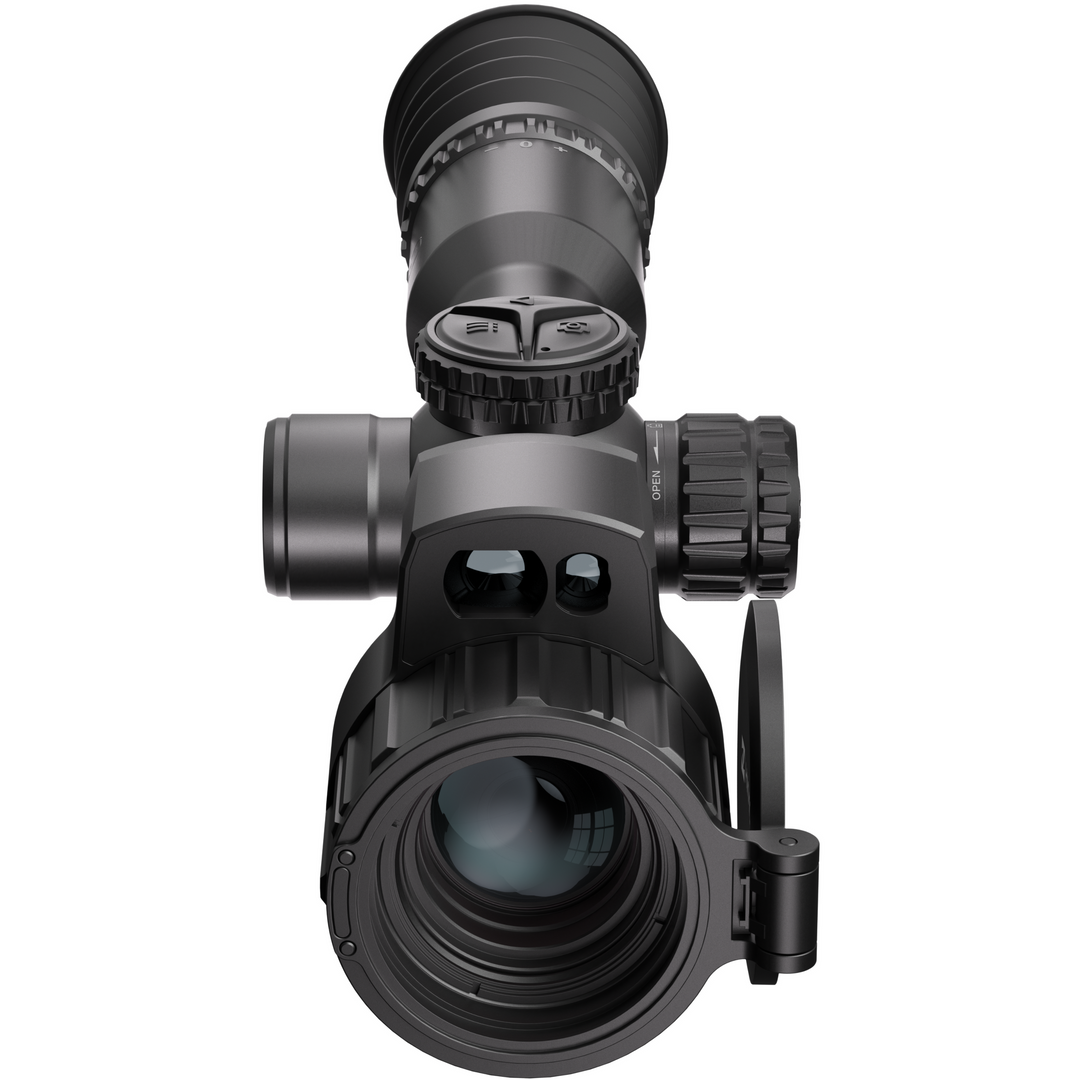

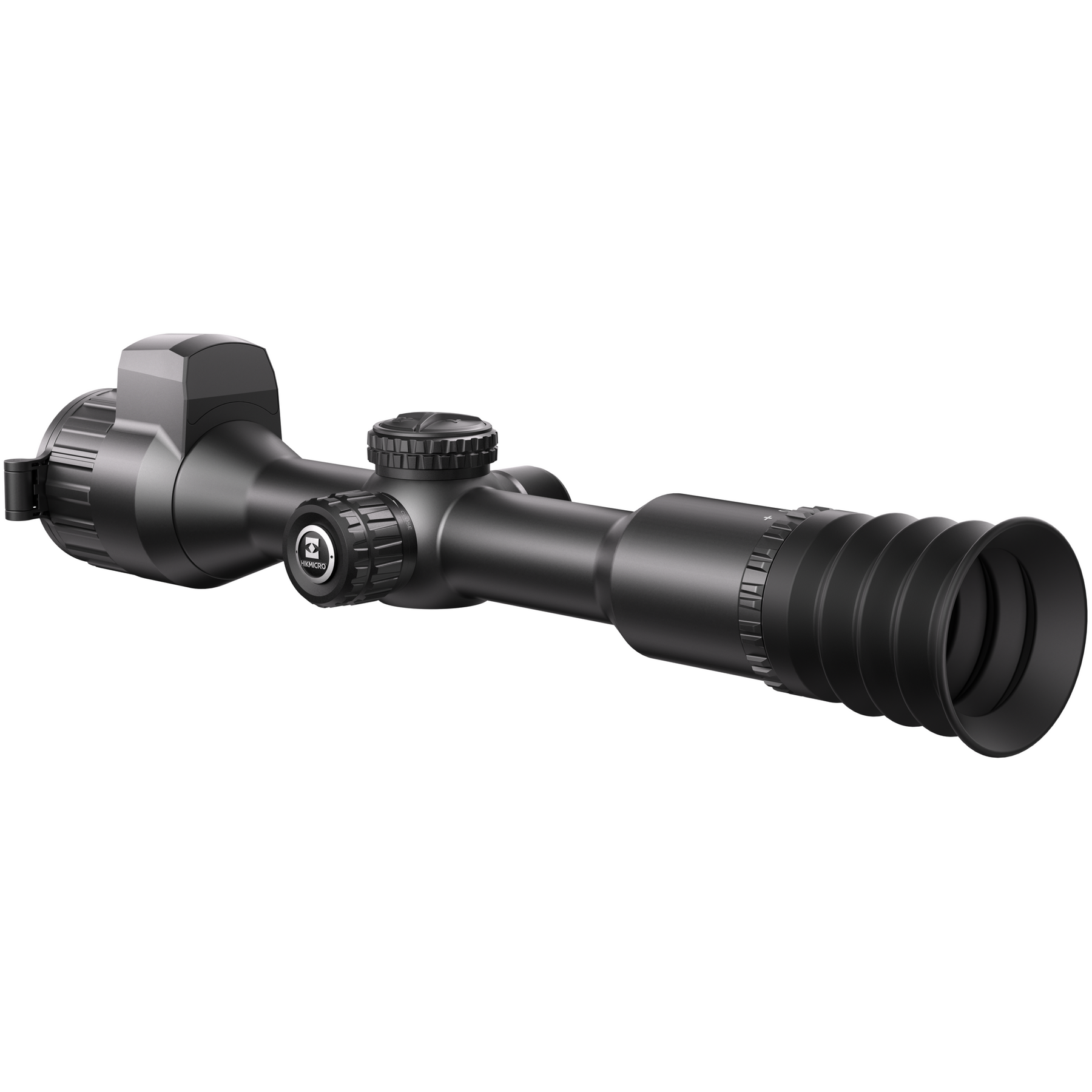

HIKMICRO Neos NH25L 320x240 Thermal Scope with LRF
NEOS NH25L Thermal Scope with Laser Rangefinder
The NEOS NH25L is here! Combining impressive thermal performance with a compact, lightweight design, it is an excellent choice for hunters looking to step into thermal optics without compromising on capability.
Featuring a 320 × 240 thermal sensor with an outstanding sub-18mK NETD, the NH25L delivers exceptional heat sensitivity and crisp target definition, even in difficult weather or low-contrast environments. Its 25mm F1.0 objective lens, 3.5x base magnification, and practical field of view provide a clear, detailed image, while offering target detection out to 1,200 metres.
A built-in 1,000-metre laser rangefinder makes judging distance fast and accurate, helping you make confident decisions in the field. Advanced features including Image Pro 3.0 image processing, Zoom Pro, and HSIS shutterless technology work together to deliver a smoother, sharper viewing experience with minimal image interruption.
Compact, reliable, and packed with premium features, the NEOS NH25L offers outstanding value for hunters wanting a thermal scope with integrated laser rangefinding, excellent image quality, and dependable performance at an accessible price.
Range Offering
Key Features
Sub-18mK Thermal Platform for a Significant Step-Up in Heat Detail
The NEOS LRF NH25L, features a highly sensitive 12μm thermal detector with an impressive sub-18mK NETD. Allowing you to detect extremely small temperature differences for clearer thermal definition in real hunting conditions. Producing cleaner heat signatures, sharper animal outlines, and stronger separation between targets and the background.
Combined with Image Pro 3.0, Zoom Pro, HSIS shutterless imaging, and a built-in 1000 m LRF, the NEOS NH25L is designed to deliver clearer thermal viewing, more usable digital zoom, and reliable distance measurement in a compact hunting scope. Image Pro 3.0 enhances target detail and background definition for a sharper, more natural thermal image, while Zoom Pro helps maintain clarity when increasing magnification so distant animals remain easier to interpret.
HSIS shutterless imaging provides a smoother viewing experience with fewer interruptions, helping hunters stay focused during active observation. Built for field use, the NEOS LRF models also feature IP67-rated weather protection and 1000 g shock resistance, giving the scope the durability needed for rain, dust, rough handling, and repeated rifle recoil. The result is a compact, value-focused thermal.
Identifying a target in the darkness can be quite challenging. Thanks to HIKMICRO's AI-powered Image Pro 3.0 and Zoom Pro algorithm, NEOS delivers clear and detailed images at all range. You can quickly lock on the target from the camouflage and zoom in to distinguish its features even it is hundreds meters away.
The larger 0.49'' AMOLED display of HIKMICRO NEOS Thermal Scope opens up the scene wider before you, allowing a more immersive view and the confidence to make precise decisions. Moreover, the broader vision helps reduce eye strain during extended hunts, making every moment more comfortable for you.
The NEOS NH25L is built to deliver dependable thermal clarity when observation distance matters. Its 320 × 240 12μm detector, sub-18mK NETD sensitivity, and 25mm F1.0 lens work together to reveal clearer heat detail, sharper target outlines, and stronger separation from the surrounding environment. Combined with Image Pro 3.0, Zoom Pro, and HSIS shutterless imaging, the NH25L provides a smoother, more consistent viewing experience, helping hunters observe with confidence across open fields, changing weather, and challenging low-visibility conditions.
Out in the field, your attention stays on the hunt, not on figuring out your gear. That’s why the HIKMICRO NEOS Thermal Scope is crafted with simple, intuitive controls and ergonomic button placement that feel natural from the moment you pick it up.
Rangefinding and Ballistic Calculation Makes Hunting Accurate and Smart
Accurate data supports an accurate shot. HIKMICRO NEOS Thermal Scope is your strong support. Its 1000m laser rangefinder delivers the exact distance to your target, and with your ammunition data entered once, NEOS calculates the bullet drop and shows the exact point of impact. You stay focused on the shot, NEOS takes care of the math.
9.5-hour Operation Time Keeps You Going
Got all Night? Good. With impressive 9.5-hour battery life, the HIKMICRO NEOS NH25L Thermal Scope keeps you powered throughout your hunting trips, giving no more worries about the drained battery in the middle of the hunt.
When the critical moment comes, the HIKMICRO NEOS Thermal Scope powers up in just one second, delivering a live image almost instantly, so you never lose your target and opportunity.
Built to endure up to 1000g/0.4ms recoil, the HIKMICRO NEOS Thermal Scope performs reliably even with larger calibers and in the harsh conditions, offering consistent precision and reliability no matter the challenge.
When stalking in darkness and silence, every step must be light and gentle. HIKMICRO NEOS Thermal Scope measures under 345 mm and weighs less than 570 g, adding no extra weight that impede your steps. Easy to carry and effortless to handle, the HIKMICRO NEOS moves with you, not against you.
With 2.4GHz/5GHz Wi-Fi module, the HIKMICRO NEOS Thermal Scope smoothly connects to the HIKMICRO Sight APP, and you can easily capture, review or share your hunting moments on the APP whether it is a moment for reflection or a proud shot.
| HIKMICRO NEOS NH25L Specifications | |
|---|---|
| Product Overview | |
| Product Series | HIKMICRO NEOS |
| Model | NH25L |
| Model Code | HM-TR32-25Y1G/W1L-NH25L |
| Product Type | Thermal rifle scope with laser rangefinder and ballistic calculation |
| Best Suited For | Compact thermal hunting, pest control, 30 mm tube mounting, laser ranging, ballistic calculation and medium-range observation |
| Thermal Module | |
| Thermal Sensor Type | VOx uncooled focal plane arrays |
| Thermal Resolution | 320 × 240 px |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity / NETD | <18 mK @ 25°C, F# = 1.0 |
| Refresh Rate | 50 Hz |
| Response Waveband | 8 μm to 14 μm |
| Optics | |
| Objective Lens | 25 mm |
| Aperture | F1.0 |
| Focus Mode | Manual focus ring |
| Minimum Focusing Distance | 3 m |
| Base Magnification | 3.5× |
| Magnification Range | 3.5× to 24.5× |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Field of View | 7.0° × 5.3° |
| Field of View at 100 m | 12.2 m × 9.3 m |
| Detection Range | Up to 1200 m |
| Image & Display | |
| Display Type | 0.49" AMOLED display |
| Colour Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Custom Enabled Palettes | Yes, palettes can be enabled or disabled in the menu |
| Brightness Adjustment | Yes |
| Contrast Adjustment | Yes |
| Tone Adjustment | Cold / Warm |
| Sharpness Adjustment | Yes |
| Scene Modes | Yes, selectable scene modes |
| Defective Pixel Correction | Yes |
| Exit Pupil | 8 mm |
| Eye Relief | 55 mm |
| Diopter Adjustment | -4D to +4D |
| Image Processing | |
| Image Processing | Image Pro 3.0 |
| Digital Zoom Enhancement | Zoom Pro |
| Shutterless Viewing | HSIS — HIKMICRO Shutterless Image System |
| Aiming Synchronisation | Sync Pro algorithm |
| FFC / Non-Uniformity Correction | Yes, hold Laser/FFC key to correct display non-uniformity |
| Picture-in-Picture | Yes |
| Hot Tracking / Hot Track | Yes |
| Burning Prevention | Yes |
| Pitch Scale | Yes |
| Quick Start-Up | Approx. 1 second |
| Laser Rangefinder & Ballistics | |
| Laser Rangefinder | Yes, built-in LRF |
| Laser Ranging Distance | Up to 1000 m |
| Laser Ranging Accuracy | ±1 m |
| Laser Key Press | Press to turn on laser ranging |
| Laser Key Double Press | Double press to turn off laser ranging |
| Laser Key Hold | Hold to correct non-uniformity of display / FFC |
| Ballistic Calculation | Yes, ballistic calculation for hunting on LRF model |
| Zeroing & Reticle | |
| Zeroing | Yes |
| Freeze Zeroing | Yes |
| Zeroing Profiles | 5 |
| Reticle Mode | Yes, selectable reticle mode |
| Reticle Selection | Yes |
| Reticle Colour Selection | Yes |
| Reticle Correction on Device | Yes |
| Reticle Correction via App | Yes, via HIKMICRO Sight app |
| Quick Zeroing on App | Yes |
| Recording, Storage & Media | |
| Video Recording | On-board video recording |
| Snapshot Capture | Yes |
| Audio Recording | Yes, built-in microphone |
| Audio Recording Control | Yes, audio can be enabled or disabled in the menu |
| Recoil-Activated Recording | Yes |
| Prerecord Video | Yes |
| Local Album | Yes |
| Internal Storage | Built-in 64 GB EMMC |
| External Memory Card | No external memory card listed; uses built-in EMMC storage |
| Connectivity & App | |
| App Compatibility | HIKMICRO Sight app |
| Phone Connection | Via device hotspot |
| Hotspot | Yes |
| Hotspot Name Format | HIKMICRO_Serial No. |
| Remote Access | Yes, must be enabled before app connection |
| App Live View / Preview | Yes, device interface can be viewed on phone through the app |
| Remote Control via App | Yes |
| Firmware Upgrade via App | Yes |
| Firmware Upgrade via PC | Yes, via USB flash drive mode |
| File Export via App | Yes |
| File Export via PC | Yes |
| PC Screen Casting | Yes, cast device screen to PC |
| Type-C Interface | USB Type-C for charging, power supply, data transmission and PC connection |
| USB Mode | USB flash drive mode available for PC upgrade/file access |
| Controls & Operation | |
| Wheel | Rotate to switch digital zoom in live view; rotate to move up/down in menu |
| Capture Key Press | Capture snapshot |
| Capture Key Hold | Start / stop video recording |
| Menu Key Press | Switch palettes in live view; confirm / set parameters in menu |
| Menu Key Hold | Enter menu in live view; save and exit menu when in menu |
| Power Key Press | Standby mode / wake up device |
| Power Key Hold | Power on / power off |
| Wheel Lock | Hold Capture Key + Laser/FFC Key to lock or unlock the wheel |
| Auto Screen Off | Yes, darkens the screen to save energy and extend battery life |
| Auto Screen Off Trigger | Can enter standby when tilted downward more than 70°, rotated horizontally more than 45°, or kept still for 5 minutes |
| Wake Methods | Tilt/rotate movement or press the power key |
| Auto Power Off | Yes, selectable auto power-off time |
| System Settings | |
| Date Adjustment | Yes |
| Time Synchronisation | Yes |
| Language Setting | Yes |
| Unit Setting | Yes |
| OSD Setting | Yes |
| Screen Style | Round or square screen style shown in manual |
| Brand Logo Display | Yes, can be set in menu |
| Screen Lock Passcode | Yes, passcode can be enabled and changed |
| View Device Information | Yes |
| Restore Device | Yes |
| Reset Device | Yes |
| Power & Battery | |
| Battery System | One internal rechargeable lithium battery and one replaceable rechargeable 18650 external battery |
| External Battery Type | Rechargeable 18650 battery |
| External Battery Size | 19 mm × 70 mm |
| External Battery Rated Voltage | 3.635 V |
| External Battery Capacity | 3300 mAh |
| Built-In Battery Type | Rechargeable lithium-ion battery |
| Built-In Battery Size | 23 mm × 67 mm |
| Built-In Battery Rated Voltage | 3.635 V |
| Built-In Battery Capacity | 3350 mAh |
| Operating Time | Up to 9 hours continuous running @ 25°C with Zoom Pro on |
| Power Supply | 5 V DC / 2 A via USB Type-C |
| Fast Charging Support | QC3.0 |
| First Charge Recommendation | Charge for more than 4 hours before first use |
| Charging Note | Only the built-in battery charges via USB-C; use the battery charger to charge the external battery |
| Power Priority | External battery first, followed by the built-in battery |
| Build & Durability | |
| Mounting Standard | 30 mm tube |
| Protection Rating | IP67 |
| Maximum Recoil Resistance | 1000 g / 0.4 ms |
| Centre Height | 32 mm |
| Dimensions | 345.6 mm × 86.1 mm × 75.8 mm |
| Weight | 550 g |
| Working Temperature | -30°C to 55°C |
| Operating Humidity | 5% to 95% |
| Included Accessories | |
| Included in the Box | HIKMICRO NEOS NH25L Thermal Rifle Scope, battery, battery charger, Type-C cable, lint-free cloth and quick start guide |
| Scope Ring Included | May vary by package; manual notes that the ring may need to be purchased separately |
| Warranty | |
| Unit Warranty | 3 years |
| Battery Warranty | 1 year |
| Common Questions | |
| Does the NH25L have a laser rangefinder? | Yes, built-in laser rangefinder up to 1000 m. |
| Does the NH25L have ballistic calculation? | Yes, ballistic calculation is included on this LRF model. |
| What is the main difference from the NE25? | The NH25L upgrades to a 320 × 240 thermal detector and adds the built-in 1000 m laser rangefinder with ballistic calculation. |
| Does it record video? | Yes, it supports on-board video recording, snapshots, audio recording and recoil-activated recording. |
| Does it support app control? | Yes, it connects to the HIKMICRO Sight app via hotspot for preview, remote control, media access and firmware upgrade. |
| Does it use a standard scope mount? | Yes, it uses a 30 mm tube mounting standard. |
