Pulsar Oryx LRF XG35 Thermal imager
Regular price $4,599.00The Pulsar Oryx LRF Monocular: Designed for the Most Challenging Hunts
Engineered to endure the toughest and longest hunting trips, the Pulsar Oryx LRF monocular is compact and optimized for one-handed operation. It encompasses all the essential features you require, including:
Extended battery life for prolonged use in the field.
Advanced laser rangefinder (LRF) with an extensive measuring range for accurate targeting.
Exceptional image quality and digital image stabilization for clear and steady visuals.
Beyond its impressive performance, the Oryx LRF boasts a robust magnesium alloy housing, built to resist water, dust, impacts, and harsh conditions—it's as resilient on the outside as it is sophisticated on the inside.
Powerful 1500 m laser rangefinder
The Oryx LRF is equipped with a powerful and precise built-in laser rangefinder capable of delivering accurate range measurements up to 1500 meters, even in complete darkness.
With two operating modes — scanning for continuous updates and single measurement for pinpoint accuracy — the rangefinder delivers versatile performance. It offers readings in meters or yards, adapting to your preferences and needs.
Dual battery system: up to 12 h. of operating time
Oryx LRF monocular is equipped with a dual battery system, combining an integrated internal battery and a removable external battery for uninterrupted power. Both batteries have separate charge indicators displayed on the unit’s screen, allowing for easy monitoring. The external battery is hot-swappable, enabling quick, seamless replacement in seconds without disrupting use.
Both batteries support power delivery and can be quickly recharged via a USB-C port for maximum convenience. This efficient system ensures reliable performance, making the Oryx LRF ideal for extended hunts and challenging conditions.
Durable rugged housing built for tough conditions
The Oryx LRF is designed to meet the rigors of long, challenging hunts. Its magnesium alloy housing offers outstanding durability — it withstands impacts, moisture, mud and extreme temperatures while delivering smooth and reliable performance. Lightweight yet resilient, this material enhances portability and ensures efficient heat dissipation, while optimizing the device’s performance during extended observation sessions.

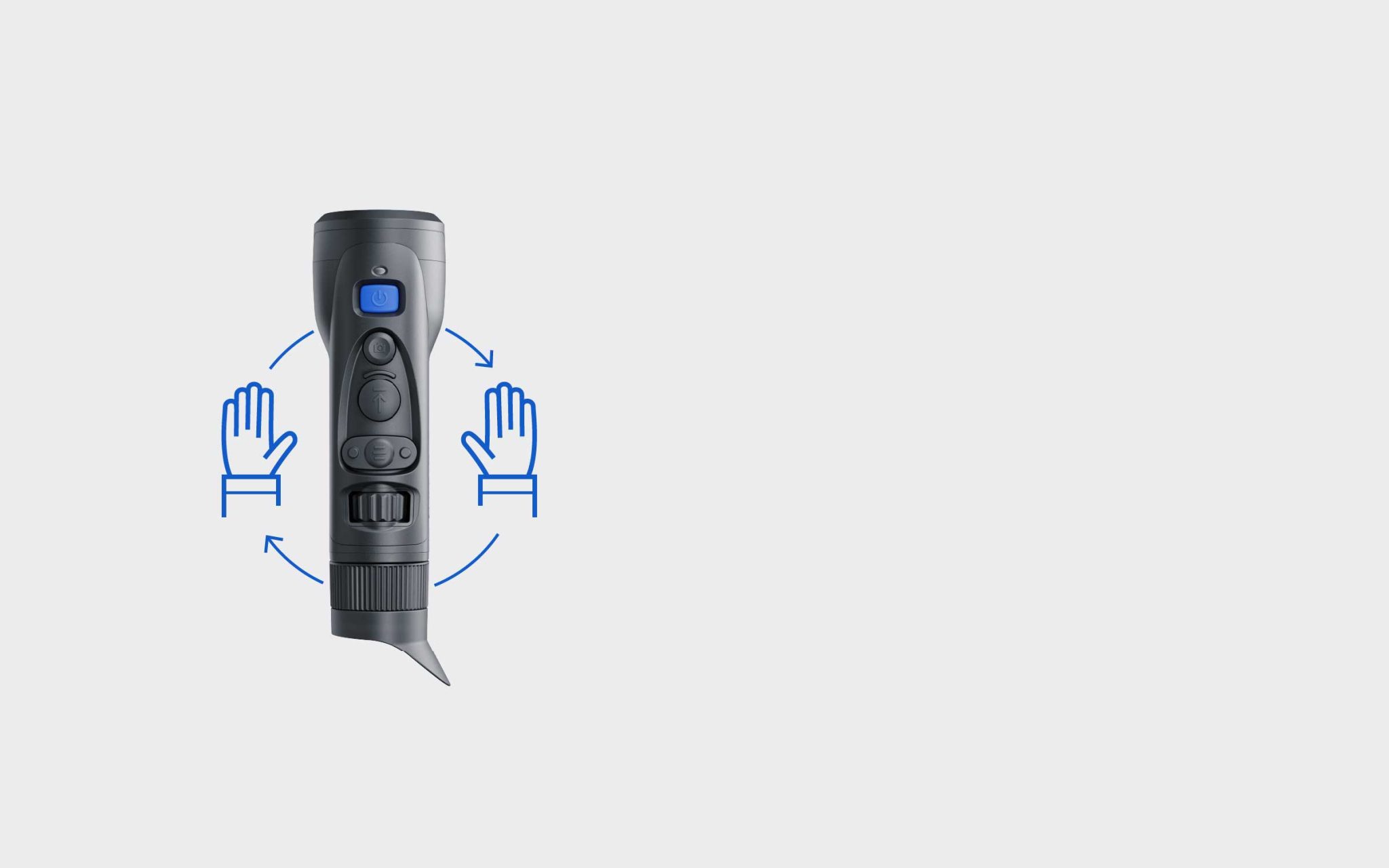

Optimized for both left and right-hand use
The Oryx line features an ambidextrous, symmetrical housing design, ensuring comfortable handling with either hand. The belt-clip and hand strap can be attached to either side of the housing allowing users to customize the device to their preferences for added versatility.
Sensitivity enhancement technology
A proprietary set of advanced algorithms and optimized electronic components power a groundbreaking approach to thermal image processing. This innovation boosts signal clarity and minimizes noise, delivering exceptional image quality and detail in every situation.
Automatic screen brightness control
The Oryx LRF features a proximity sensor that automatically turns off the screen when the device is moved away from your eyes. This innovative function helps maintain stealth during operations while conserving battery life, ensuring it is always ready when it matters most.

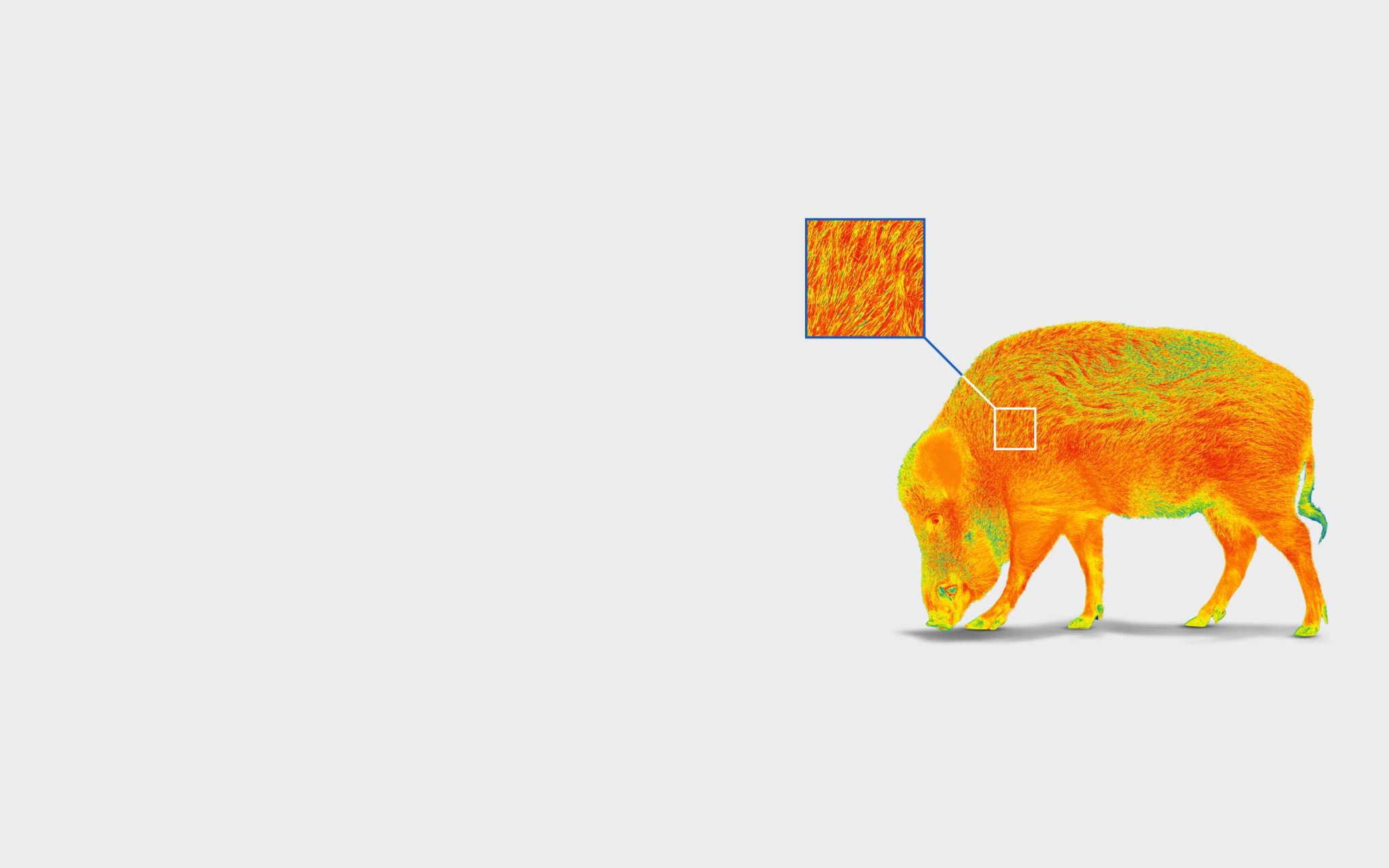

Extra-high detail thermal image
The Oryx LRF delivers high-quality thermal imaging with multiple color palettes and remarkable detail. Its advanced video processing platform ensures precise object rendering, capturing even the finest nuances. Paired with optimized brightness and contrast settings, the device offers exceptional clarity and sharpness for an unparalleled viewing experience.
Haptic feedback
For a more intuitive and tactile experience of the Oryx LRF, activate the haptic feedback function in the device’s short menu. The unit responds with short vibrations when pressing the control buttons.
Image stabilization
Oryx LRF features electronic image stabilization, enhancing image sharpness and reducing artefacts caused by shaking hands. It minimizes motion blur, ensuring more comfortable observation of distant objects.
IP67 protection rating
The Oryx LRF is the first Pulsar device with an IP67 protection rating, offering outstanding durability. Engineered to perform flawlessly, it can withstand submersion in up to 1 meter of water for up to 30 minutes and is fully protected against dust and contact with objects larger than 1 mm, ensuring reliable performance in the harshest conditions.
Other features
- European thermal imaging sensor
- 64 GB memory for photo and video recording
- Stream Vision 2 app support for iOS and Android via WiFi
- 3 sensitivity amplification levels
- “Picture-in-picture” observation mode
- Wide field of view for easy scanning
- A selection of 9 color palettes
- Digital zooming for enhanced identification
Main Specifications
- Sensor @ 12 µm 640x480
- Objective lens F35 / 1.0
- Magnification, x 2.5 – 20 (x8 digital zoom)
- FOV (HxV), degrees 12.5×9.4
- FOV (HxV), m@100m 21.9
- Detection range 1800 m
Sensor
- Type uncooled
- Resolution, pixels 640x480
- Pixel pitch, µm 12
- Sensor NETD, mK < 40
- System NETD, mK < 20
- Frame rate, Hz 50
Optics
- Objective lens F35 / 1.0
- Magnification, x 2.5 – 20 (x8 digital zoom)
- FOV (HxV), degrees 12.5×9.4
- FOV (HxV), m@100m 21.9
- Eye relief, mm 14
Display
- Type AMOLED HD
- Resolution, pixels 1024x768
Range performance
- Detection range, m 1800 m
Laser rangefinder
- Max. measuring range, m 1500
- Measurement accuracy, m ± 1
- Safety class for laser equipment according to IEC 60825-1:2014 1
- Wavelength, nm 905
Video recorder
- Video / photo resultion, pixel 1024x768
- Video / photo format .mp4 / .jpg
- Build-in memory, GB 64
WI-FI
- Wireless protocol Wi-Fi
- Wireless standard IEEE 802.11 b/g/n/ac (WPA)
- Frequency, Ghz 2.4 / 5
Environmental characteristics
- Degree of protection IP code (IEC60529) IP67
- Operating temperature range, °С -25 – +40
Connections and compatibilities
- Mount type 1/4" socket
- Supported application Stream Vision 2
Power supply
- Output voltage, V 3.0 – 4.2
- Battery type APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V (removable) & Li-Ion Battery Pack / 3200 mAh / DC 3.7 V (built-in)
- Capacity, mAh 4900
- Operating time on battery pack, 12 (built-in + removable)
- External power supply, V 5V; 9V (USB Type-C Power Delivery)
Weight & size
- Body material Magnesium alloy
- Dimensions, mm 179х52х77
- Weight, kg 0.5
